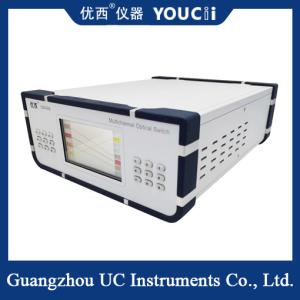

Multi-Channel Output Optical Switch Can Be Customized
Optical switch is a kind of optical path control device, which plays the role of controlling optical path and converting optical path. It plays an important role in optical communication applications.
The optical switch is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and optical sensing multi-point dynamic monitoring system; The optical test system is used for optical fiber, optical device, network and field engineering cable testing; Optical device installation and adjustment. The 4 x 8 optical switch switches the four input routes to one of the eight output routes.
specification
| MODEL | U84408 |
| Operating wavelength | 1260 ～ 1650nm |
| Test wavelength | 1310nm / 1550 nm |
| Insertion loss | ≤1.7 dB |
| repeatability | ≤0.1 dB |
| Return loss | ≥45dB |
| crosstalk | ≥50dB |
| Switching time | ≤5ms(Adjacent sequential switching) |
| Fiber type | Single |
| Connector form | FC/APC |
| Monitoring port | RS232,USB,Ethernet port |
| Working power supply | AC 220V |
| Operating temperature | -5 ～ + 65℃ |
| Storage temperature | -40 ～ + 85°C |
Front panel description
(1) LCD display: input channel and output channel information display.
(2) Key plate: The left key corresponds to the input channel (input channel key optional 1~4), the right key corresponds to the output channel (output channel key optional 1~8).
Rear panel description
(1) RS232 serial port, USB interface, RJ45 Ethernet interface: device monitoring data information communication interface.
(2) AC INPUT power port: Connect to AC 220V power supply.
(3) IN 1 to IN 4: optical switch input port.
(4) OUT 1 to OUT 8: optical switch output outlet.
